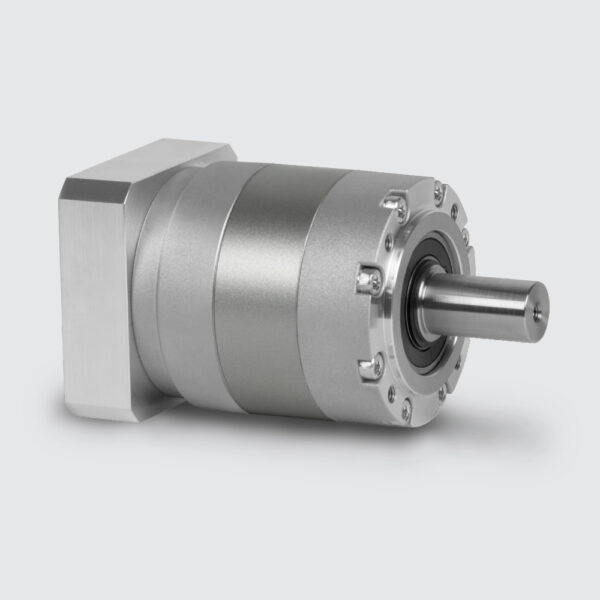

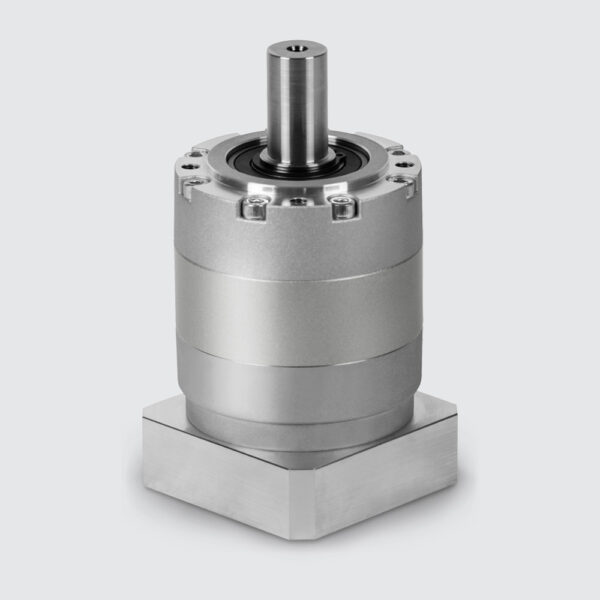

PRE Series

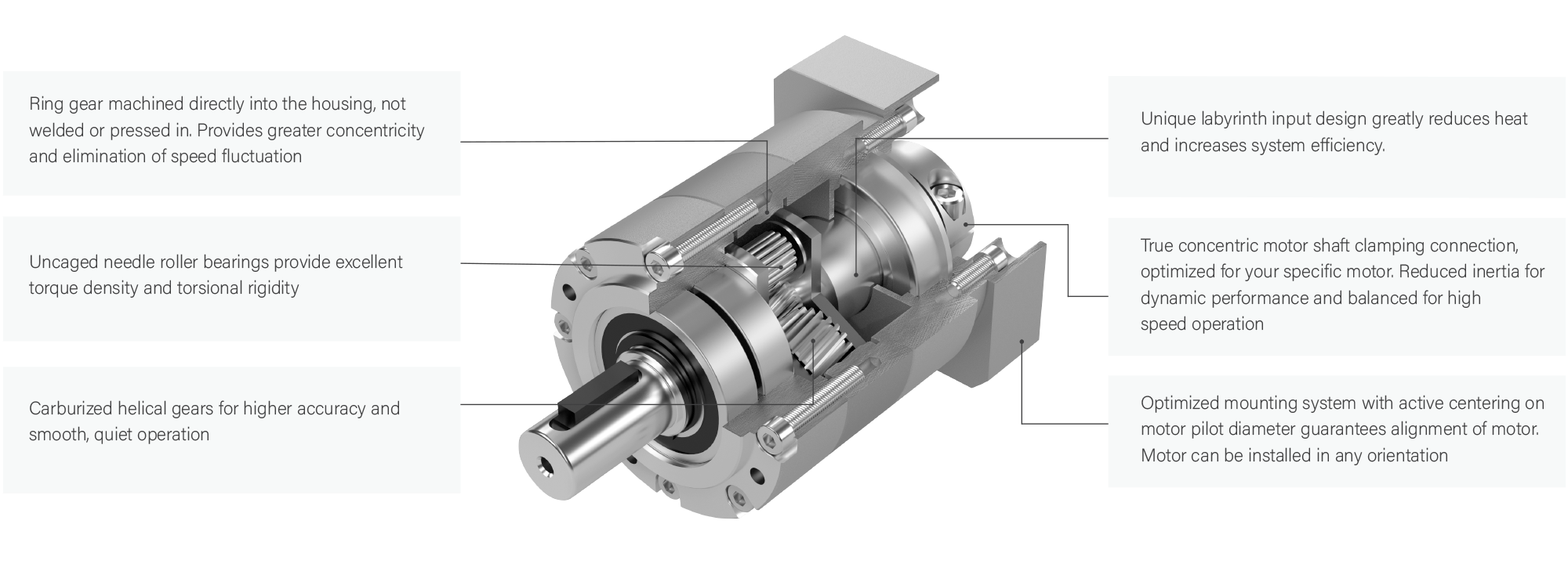

PRE is part of the latest generation economy product family from Nidec Drive Technology Corporation. The PRE redefines the economy planetary gearbox segment by featuring helical cut gearing and a robust internal structure. Our customers benefit from a cost-effective, flexible, reliable design that can be adapted into a wide range of servo and stepper motor axes.

The PRE features industry-standard output mounting geometry with simple adaptation to any motor. Frame sizes from 062-160, along with ≤ 8-10 arc-minute backlash, allow the PRE to cover a broad range of application requirements where cost is a key consideration. As with all Nidec DTC planetary products, PRE is designed for maximum heat reduction and running efficiency through the use of special sealing and lubrication technology.
