EJM 009 Frame

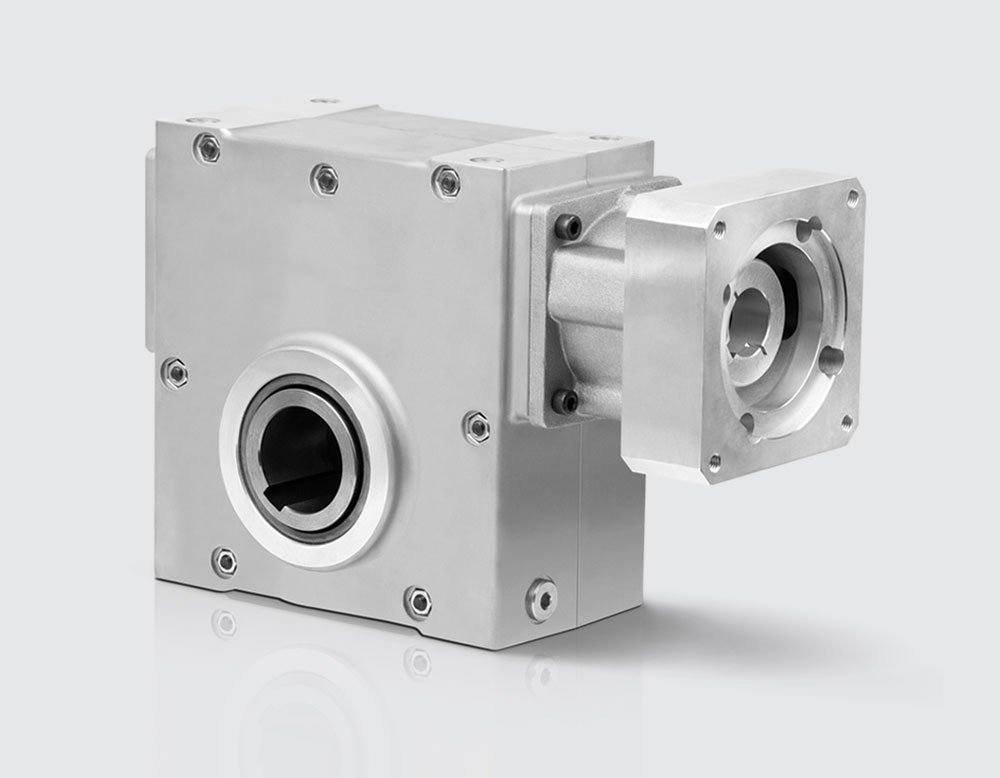

The EJM meets a wide range of application requirements and can support servo motors with up to 7.5kW capacity. Solid, hollow and double extended output shaft options allow for flexible machine design. The all-aluminum housing construction offers weight savings of up to 30% with improved thermal horsepower over cast iron.
The EJM series comes vent free and lubricated for life with synthetic oil, making it a reliable, maintenance-free solution. This product is ideally suited for applications within the packaging, material handling and general automation markets
Technical Data
EJM 009 Frame Size, 1 Stage Specifications
| Ratio | Unit | Note | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 | 60 |
| Nominal Output Torque | [Nm] | – | 245 | 262 | 259 | 305 | 314 | 308 | 327 | 295 | 278 | 264 |
| Maximum Acceleration Torque | [Nm] | – | 317 | 333 | 259 | 312 | 386 | 376 | 369 | 356 | 335 | 317 |
| Emergency Stop Torque | [Nm] | – | 490 | 524 | 518 | 610 | 628 | 616 | 654 | 590 | 556 | 528 |
| No Load Running Torque | [Nm] | *1 | 4.80 | 4.80 | 4.80 | 4.80 | 4.80 | 4.80 | 4.80 | 4.80 | 4.80 | 4.80 |
| Nominal Input Speed | [rpm] | – | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 |
| Max Continuous Input Speed | [rpm] | – | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 |
| Maximum Cyclic Input Speed | [rpm] | – | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 |
| Maximum Radial Load | [N] | *2 | 6,890 | 6,890 | 6,890 | 6,890 | 6,890 | 6,890 | 6,890 | 6,890 | 6,890 | 6,890 |
| Maximum Axial Load | [N] | *3 | 4,890 | 4,890 | 4,890 | 4,890 | 4,890 | 4,890 | 4,890 | 4,890 | 4,890 | 4,890 |
| Moment of Inertia | [kgcm2] | – | 12.4 | 10.5 | 9.87 | 9.40 | 9.24 | 9.17 | 9.12 | 9.08 | 9.07 | 9.06 |
| Efficiency | [%] | *4 | 93 | 92 | 91 | 89 | 86 | 83 | 81 | 76 | 71 | 66 |
| Torsional Rigidity | [Nm/arcmin] | – | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 | 15.5 |
| Maximum Torsional Backlash | [Arc-min] | – | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 | ≤ 15 |
| Noise Level | dB [A] | *5 | ≤ 83 | ≤ 83 | ≤ 83 | ≤ 83 | ≤ 83 | ≤ 83 | ≤ 83 | ≤ 83 | ≤ 83 | ≤ 83 |
| Ambient Temperature | [°C] | – | -25~93 | -25~93 | -25~93 | -25~93 | -25~93 | -25~93 | -25~93 | -25~93 | -25~93 | -25~93 |
| Permitted Housing Temperature | [°C] | – | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Protection Class | – | – | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 | IP55 |
| Lubrication | – | – | Synthetic Oil | Synthetic Oil | Synthetic Oil | Synthetic Oil | Synthetic Oil | Synthetic Oil | Synthetic Oil | Synthetic Oil | Synthetic Oil | Synthetic Oil |
| Service Life | [Hours] | – | 25,000 | 25,000 | 25,000 | 25,000 | 25,000 | 25,000 | 25,000 | 25,000 | 25,000 | 25,000 |
| Weight | [kg] | *6 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
- Torque at no load applied to the input shaft at 2,000 rpm
- The maximum radial load the gearbox can accept
- The maximum axial load the gearbox can accept
- The efficiency at the nominal output torque rating
- Measured with no load applied to the input shaft at 2,000 rpm
- Weight may vary slightly between models

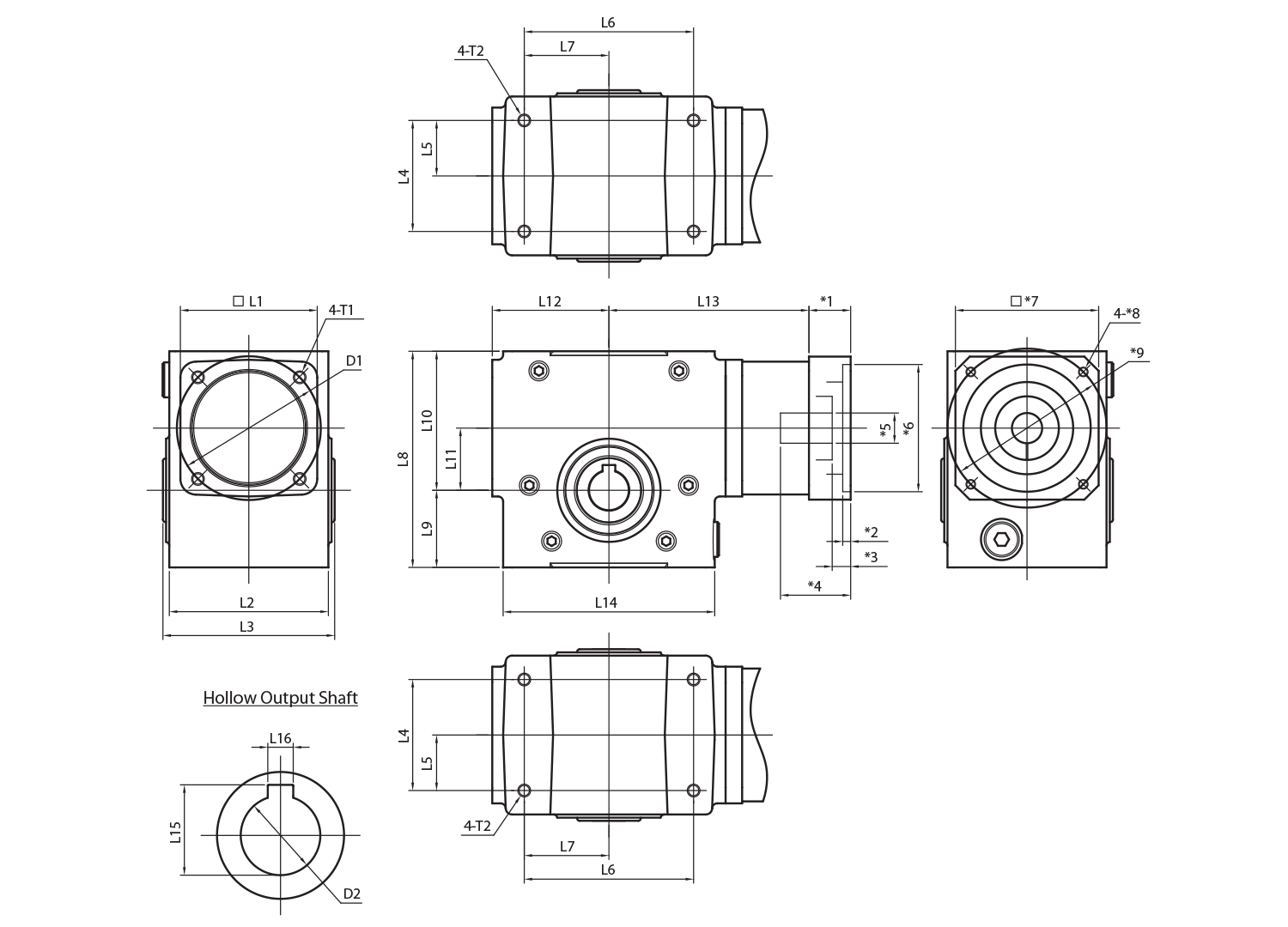

EJM 009 Dimensions – Hollow Output Shaft
| Frame Size | Unit | Note | EJM 009 |
| L1 | [mm] | – | 116 |
| L2 | [mm] | – | 130 |
| L3 | [mm] | – | 138 |
| L4 | [mm] | – | 102 |
| L5 | [mm] | – | 51 |
| L6 | [mm] | – | 178 |
| L7 | [mm] | – | 89 |
| L8 | [mm] | – | 225.5 |
| L9 | [mm] | – | 82.5 |
| L10 | [mm] | – | 143 |
| L11 | [mm] | – | 76.2 |
| L12 | [mm] | – | 117 |
| L13 | [mm] | – | 184 |
| L14 | [mm] | – | 229 |
| L15 | [mm] | – | 59.5 |
| L16 | [mm] | – | 16 |
| D1 | [mm] | – | ø127 |
| D2 (h7) | [mm] | – | ø55 |
| T1 | [mm] | – | M8x12 |
| T2 | [mm] | – | M12x18 |
| *1~ | [mm] | *9 | Motor attachment dimensions are made to fit your servo motor. |

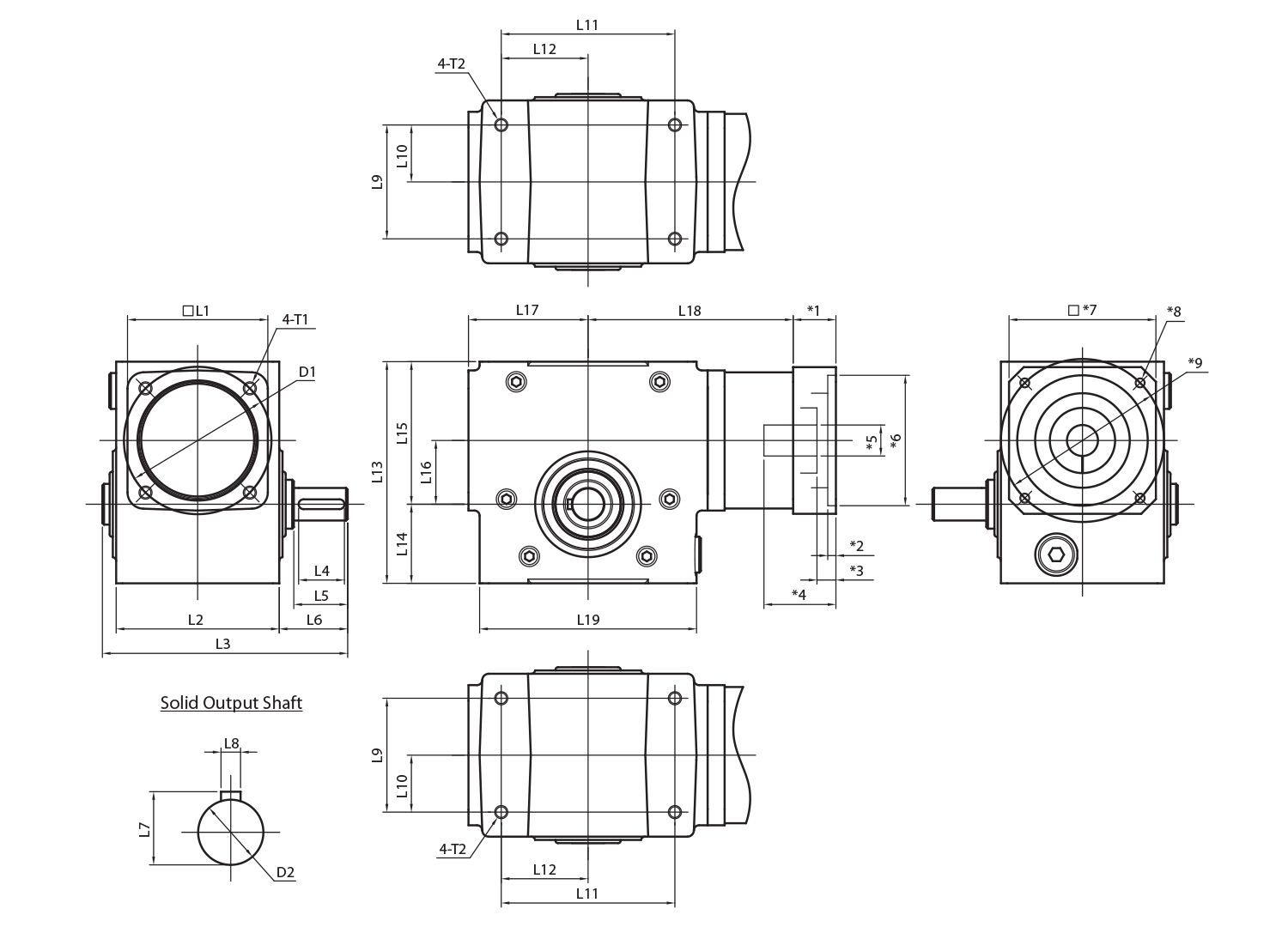

EJM 009 Dimensions – Solid Output Shaft
| Frame Size | Unit | Note | EJM 009 |
| L1 | [mm] | – | 116 |
| L2 | [mm] | – | 130 |
| L3 | [mm] | – | 204 |
| L4 | [mm] | – | 50 |
| L5 | [mm] | – | 54 |
| L6 | [mm] | – | 64 |
| L7 | [mm] | – | 38 |
| L8 | [mm] | – | 10 |
| L9 | [mm] | – | 102 |
| L10 | [mm] | – | 51 |
| L11 | [mm] | – | 178 |
| L12 | [mm] | – | 89 |
| L13 | [mm] | – | 225.5 |
| L14 | [mm] | – | 82.5 |
| L15 | [mm] | – | 143 |
| L16 | [mm] | – | 76.2 |
| L17 | [mm] | – | 117 |
| L18 | [mm] | – | 184 |
| L19 | [mm] | – | 228.5 |
| D1 | [mm] | – | ø127 |
| D2 (h6) | [mm] | – | ø35 |
| T1 | [mm] | – | M8x12 |
| T2 | [mm] | – | M12x18 |
| *1~ | [mm] | *9 | Motor attachment dimensions are made to fit your servo motor. |
